Ruggedized High-Speed Interconnect System

Helping High-Speed Data Projects Take Flight With Tomorrow’s Ruggedized Connectivity Technology−Today

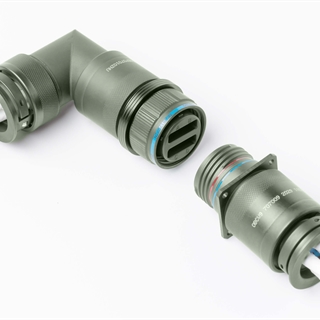

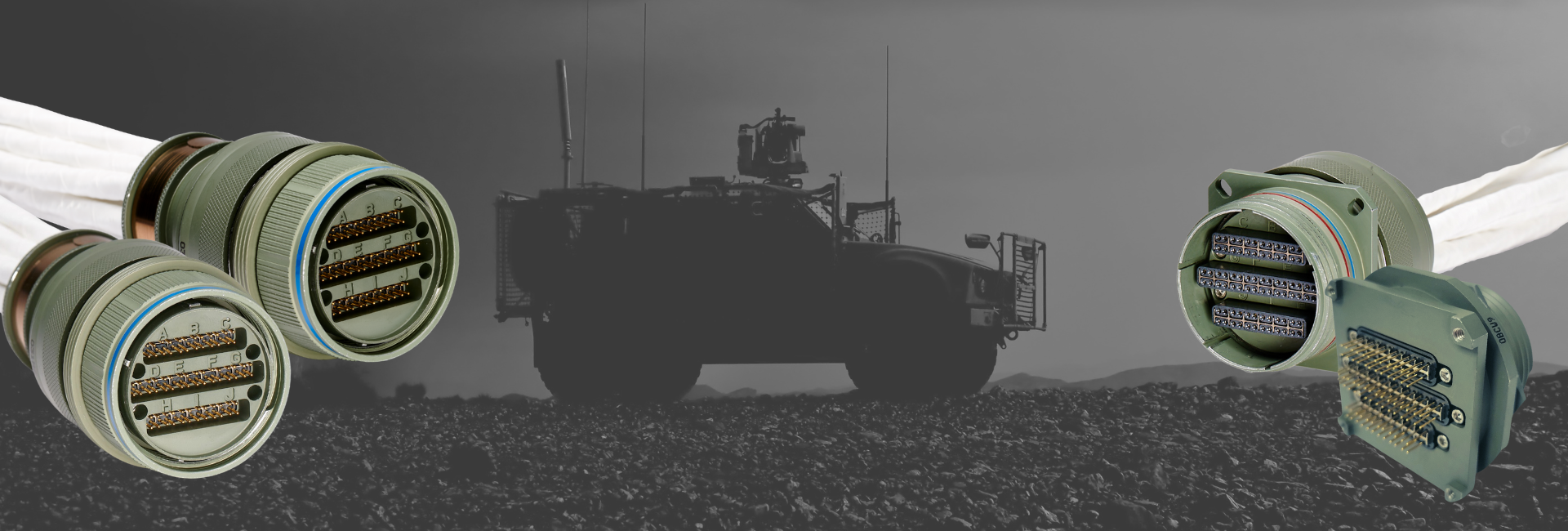

MACHFORCE is an innovative and rugged D38999 style 10G Ethernet connector engineered for sophisticated, high-speed electronics in the aerospace and defense market.



We understand your time is valuable, so we designed many features into the MACHFORCE connectors to reduce install or repair time and get you back to the mission at hand.



MACHFORCE is also offered as a complete assembly for unique applications and streamlining installations. For custom configurations, contact PIC Wire & Cable.

BUILD YOUR MACHFORCE ASSEMBLY




The Patented High-Speed Module Makes it Possible

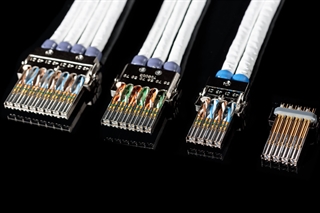

High Speed Modules

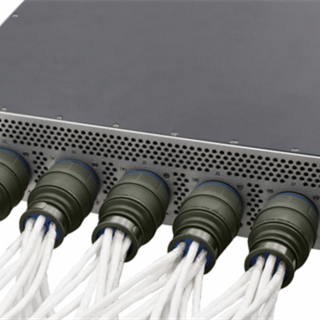

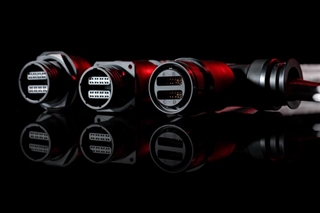

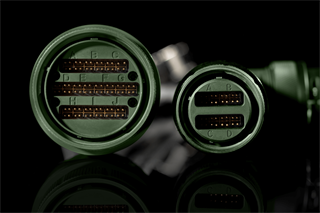

TRANSMITS MORE DATA IN LESS SPACE

  • The rectangular pin configuration of the HSM improves density.
  • Our Size 25 housing accommodates 10 Ethernet cables.
  • Our Size 17 housing accommodates 4 Ethernet cables.

Maximized Shell Size Density Reduces Interconnect Footprint

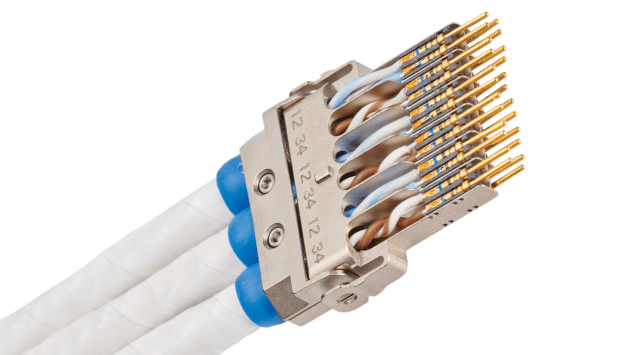

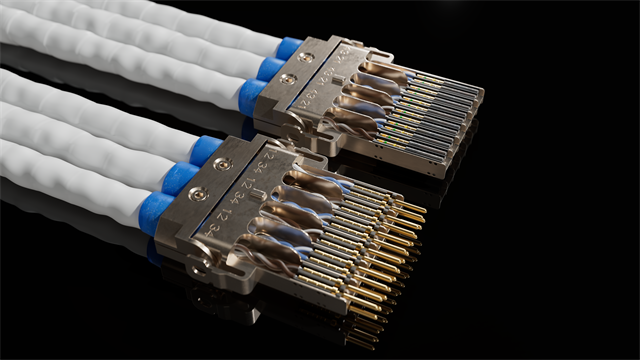

OUTSTANDING HIGH-SPEED PERFORMANCE

  • The HSM maintains data pair twists to control impedance.
  • Aluminum fins of the HSM isolate data pairs to reduce crosstalk.
  • A unique shield termination design provides 360° grounding contact.
  • The HSM extends through the PCB preventing crosstalk.

Robust Signal Integrity for Multiple Disconnects

blank
blank

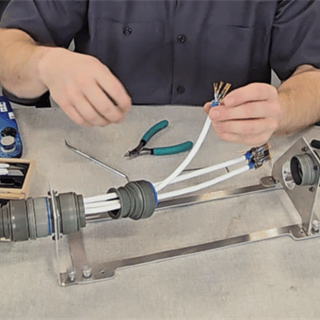

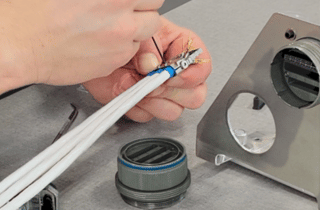

REDUCES INSTALLATION TIME & OFFERS REPAIRABILITY

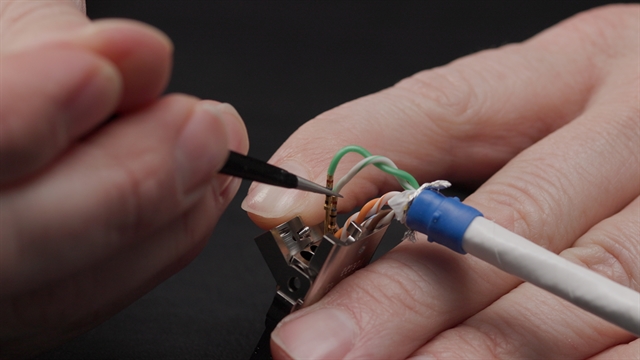

  • Industry-standard tools, 22D pins & sockets allow for simplified termination.
  • The interface between the connector body and HSM provides direct access to terminated wires.
  • PCB accessibility allows for pin changes without disturbing contacts or board components.
  • The anti-decoupling ring is easily disconnected, even with a gloved hand.

Direct Access to Every Terminated Pin Makes On-Site Repairs Possible

RUGGEDIZED TECHNOLOGY FOR CHALLENGING APPLICATIONS

  • The anti-decoupling ring allows for a secure connection in high shock and vibration environments.
  • Black Zinc Nickel (RoHS) or Olive Drab Cadmium plating options ensure connector longevity.
  • Backshells provide strain relief and ingress protection against sand, dust, and fluids.

Connector Durability Supports Sophisticated Electronics in Harsh Environments

blank

MACHFORCE Features

Click a feature to learn more

MACHFORCE Features

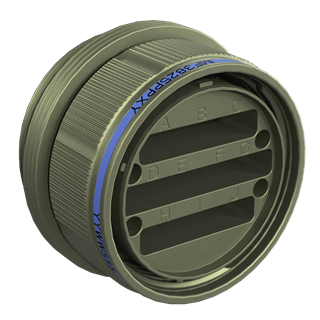

D38999 Style Shell High Speed Module Anti-Decoupling Ring Standard Pins/Sockets Backshell

D38999 Style Shell

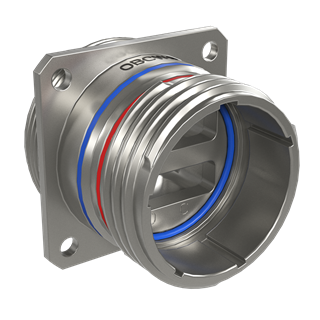

Shell types include plug and flange MT receptacle

High Speed Module

Ten 10G Ethernet ports with rectangular pin configuration

Anti-Decoupling Ring

Allows quick connects/disconnects with gloved hand and easy access to terminated wires for field repairs

Standard Pins/Sockets

22D pins, sockets and standard tools simplify termination and field repairs

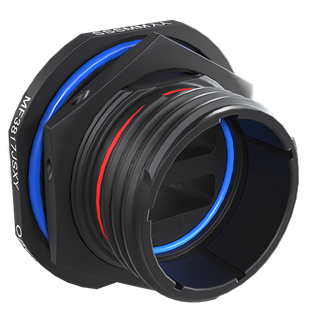

Backshell

Unique sealed and unsealed backshell styles for strain relief


Properties Size 17

blank

SHELLType: D38999 Series III Style
Styles: Flange, Jam Nut, & PlugClearance Panel Thickness: Flange: 0.228" (5.8mm)
Jam Nut: 0.126" (3.2mm)
Operating Temperature: -65°C to 200°C
MATERIALSBody Components: AluminumADR Ring: Stainless Steel
Insulators: Liquid Crystal PolymerGrommets & Seals: Fluorosilicone
Plating: Olive Drab Cadmium, Black Zinc NickelContacts: M39029-58-360 & M39029-57-354
COUPLING TORQUEMaximum engagement & disengagement:
24 inch pounds (2.7 N-m)
Minimum disengagement:
3 inch pounds (0.3 N-m)
WEIGHTFlange: 0.10lbs (43.9g)Standard Backshell: 0.09lbs (41.7g)
Jam Nut 0.11lbs (51.6g)90° Standard Backshell: (49.5g)
Plug: 0.16lbs (74.8g)Low Profile Backshell: (17.1g)
PCB: 0.017lbs (7.9g)

Properties Size 25

blank

SHELLType: D38999 Series III Style
Styles: Plug & Flange MT ReceptacleClearance Panel Thickness: 0.197in (5.0mm)
Operating Temperature: -65°C to 200°C
MATERIALSBody Components: AluminumADR Ring: Stainless Steel
Insulators: Liquid Crystal PolymerGrommets & Seals: Fluorosilicone
Plating: Olive Drab Cadmium, Black Zinc NickelContacts: M39029-58-360 & M39029-57-354
COUPLING TORQUEMaximum engagement & disengagement:
40 inch pounds (4.6 N-m)
Minimum disengagement:
5 inch pounds (0.6 N-m)
WEIGHTFlange: 0.17lb (79g)Standard Backshell: 0.12lb (55g)
Plug: 0.27lb (122g)Low Profile Backshell: 0.081lb (37g)

VIEW MACHFORCE PHYSICAL & ENVIRONMENTAL TESTING


Shielded 10G Ethernet Cable Solutions

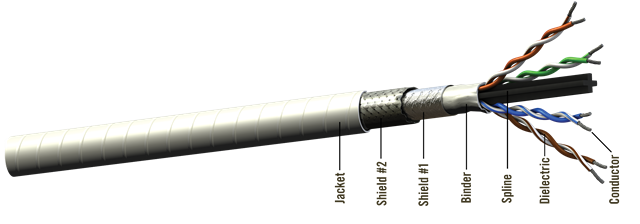

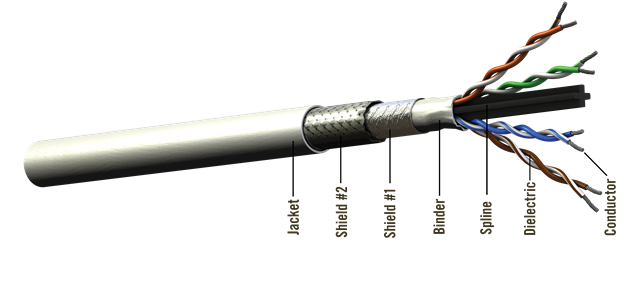

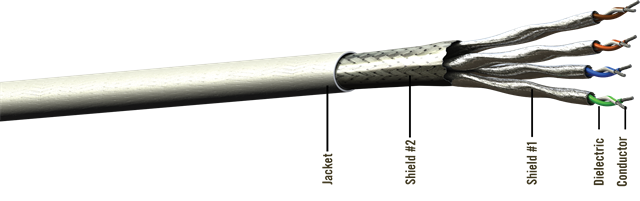

MACHFORCE connectors have been tested and qualified with PIC Wire & Cable’s DataMATES® 10G Ethernet cables. The E6A6824 and E6A6826 CAT6a cables offer a shielding design that minimizes crosstalk between twisted pairs. These cables feature silver-plated copper braided shielding as well as foil shielding that reduces electromagnetic waves which are emitted from the pairs. When the MACHFORCE connector is paired with E6A6824 and E6A6826 cables, the resulting electrical performance allows for industry-leading cable lengths and multiple connection breaks.

Part
Number
Data
Conductor
Speed
Rating
Description Weight
lbs/100 ft
(kg/100 m)
O.D. in (mm) Temperature
Rating (°C)
Burn Test MACHFORCE Electrical Tests
E6A6824 24 AWG SPC 10G Base-T Flexible tape wrapped, laser markable jacket 4.4 (6.5) 0.26 (6.60) -55/+200 View View
E6A6826 26 AWG SPCA 10G Base-T Flexible tape wrapped, laser markable jacket 3.2 (4.8) 0.22 (5.59) -55/+200 View View

VIEW MACHFORCE ELECTRICAL PERFORMANCE
