USB2624
USB2624 - USB 2.0 Cable

The USB2624 is a USB 2.0 cable specially designed for airborne application. The USB2624’s twisted-pair construction of silver-plated copper conductors is surrounded by PFA insulation. The 100% foil and 80% braided shielding assure uniform conductivity with excellent solderability, further protecting against EMI. The PTFE laser markable jacket protects the cable against abrasion and environmental effects while maintaining flexibility for ease of installation. USB2624 meets or exceeds all EIA-364-XX specifications.

USB2624 Product Bulletin

USB2624 Burn Test Data

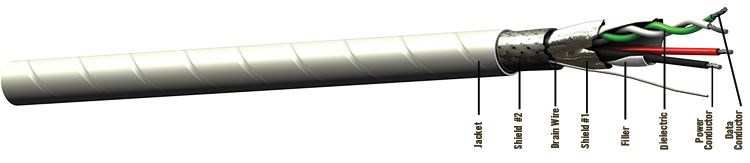

Cable Construction

  • Data Conductor: Silver-Plated High Strength Copper Alloy
  • Power Conductor: Silver-Plated Copper
  • Dielectric: PFA
  • Filler:  PTFE Tape
  • Drain Wire: Silver-Plated Copper
  • Shield #1: Aluminum/Polyimide Foil
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: PTFE, White (Laser Markable)
../CableConstructionImageAltText

Color Codes

  • Twisted Data Pair: Green/White
  • Power Pair: Black/Red

Physical Data

  • Conductor:26 AWG Stranded SPHSCA
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.16 (4.17)
  • Minimum Bend Radius: in (mm)0.50 (12.70)
  • Weight: lbs/100 ft (kg/100 m)2.20 (3.30)

Electrical Data

  • Impedance: ohms90
  • Capacitance: pF/ft (m)13.00 (42.70)
  • Time Delay: ns/ft (m)1.48 (4.86)

Attenuation

Frequency  Nom/Max dB/100 ft Nom/Max (dB/m)
@96 MHz 0.09/0.10 (0.30/0.33)
@200 MHz 0.12/0.13 (0.38/0.42)
@400 MHz 0.16/0.18 (0.54/0.60)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data
