E6A6826 - CAT 6a Ethernet Cable (4 Data Pair)

The E6A6826 Cat 6a ethernet cable (exceeding ANSI/TIA-568-C.2 CAT 6a Channel Requirements) incorporates innovative design features to provide maximum electrical performance in a small, lightweight, and flexible package. E6A6826 delivers 10 Gigabit performance, up to 214 ft. by incorporating differential lay lengths between pairs and utilizing a foil and braided shield. It features a silver-plated high-strength copper conductor and flexible, laser-markable PTFE jacket for technical performance. E6A6826 cables provide the performance necessary for demanding applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

E6A6826 Product Bulletin

E6A6826 Burn Test Data

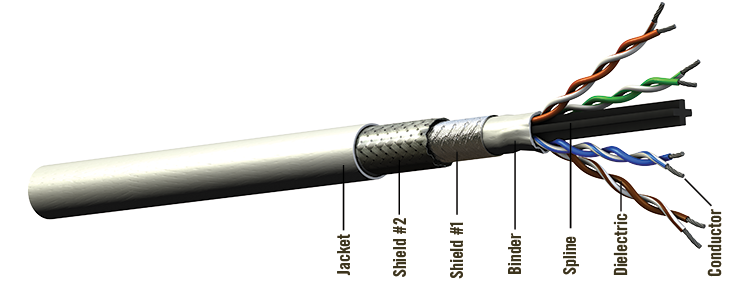

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: PFA
  • Spline:  Fluoropolymer
  • Binder: PTFE Tape
  • Shield #1: Aluminum/Polyimide Foil
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: PTFE, White (Laser Markable)
../CableConstructionImageAltText

Color Codes

  • Pair #1: Blue, White/Blue Stripe
  • Pair #2: Orange, White/Orange Stripe
  • Pair #3: Green, White/Green Stripe
  • Pair #4: Brown, White/Brown Stripe

Physical Data

  • Conductor:26 AWG Stranded SPHSCA
  • Shield Coverage:100% Foil / 80% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.22 (5.59)
  • Minimum Bend Radius: in (mm)0.66 (16.76)
  • Weight: lbs/100 ft (kg/100 m)3.20 (4.80)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)14.50 (47.60)
  • Velocity of Propagation: 70.00%
  • Dielectric Voltage Rating: (kV, RMS)1.50
  • DC Resistance: ohms/1000 ft (m)44.80 (147.00)
  • Max Distance:* ft (m)214 (65)

Attenuation

Frequency  Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.6/3.0 (8.5/9.8)
@100 MHz 8.2/9.7 (26.9/31.8)
@250 MHz 13.2/15.8 (43.3/51.8)
@500 MHz 19.3/23.0 (63.3/75.5)

Spec Sheet Builder

E6A6826 Connectors

Select one or more connector files to download directly or add to your compiled pdf document.

Connector TypeDescriptionPart NumberTermination InstructionsAdd to Spec Sheet
RJ45 For 4 Pair CablesShielded CAT 6a, Plug w/Protective Boot110725T-110725
Shielded CAT 6a, Plug w/ATUM Strain Relief110731T-110731
Plug w/ATUM Strain Relief (Cat 6a) fits Amphenol (RJF) Ruggedized Backshell110790T-110790
90 Deg Plug w/ATUM Strain Relief (Cat 6a)110904 (568B)T-110904
90 Deg Plug w/ATUM Strain Relief (Cat 6a)110913 (568A)T-110913
Jack w/ATUM Strain Relief (Cat 6a)110937T-110937
Jack w/ATUM Strain Relief (Cat 6a)110938T-110938
Plug w/Clamp Nut Strain Relief (Cat 6a)111007T-111007
Plug w/Clamp Nut Strain Relief (Cat 6a)111009T-111009
