E6A5826
E6A5826 - CAT 6a Ethernet Cable (4 Data Pair)

The E6A5826 Cat 6a ethernet cable (exceeding ANSI/TIA-568-C.2 CAT 6a Channel Requirements) incorporates innovative design features to provide maximum electrical performance in a small, lightweight, and flexible package. E6A5826 delivers 10 Gigabit performance by incorporating a silver-plated high-strength copper conductor and flexible, laser-markable PTFE jacket for technical performance. E6A5826 cables provide the performance necessary for demanding applications such as cabin management systems (CMS), in-flight entertainment (IFE), and Ethernet backbones.

E6A5826 Product Bulletin

E6A5826 Burn Test Data

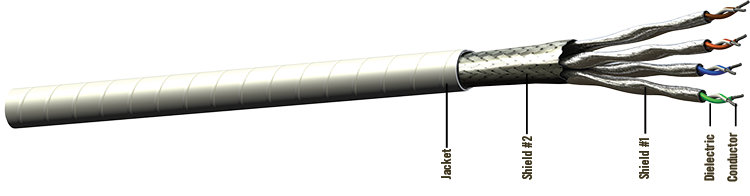

Cable Construction

  • Conductor: Silver-Plated High Strength Copper Alloy
  • Dielectric: PFA
  • Shield #1: Aluminum/Polyimide Foil (each pair)
  • Shield #2: Silver-Plated Copper Braid
  • Jacket: PTFE Tape (White), Laser Markable
../CableConstructionImageAltText

Color Codes

  • Pair #1: Blue, White/Blue Stripe
  • Pair #2: Orange, White/Orange Stripe
  • Pair #3: Green, White/Green Stripe
  • Pair #4: Brown, White/Brown Stripe

Physical Data

  • Conductor:26 AWG Stranded SPHSCA
  • Shield Coverage:100% Foil / 90% Braid
  • Temperature Range: -55/200°C
  • Outer Diameter: in (mm)0.22 (5.46)
  • Minimum Bend Radius: in (mm)1.10 (27.94)
  • Weight: lbs/100 ft (kg/100 m)3.00 (4.50)

Electrical Data

  • Impedance: ohms100
  • Capacitance: pF/ft (m)12.00 (39.40)
  • Velocity of Propagation: 80.00%
  • Dielectric Voltage Rating: (kV, RMS)0.90
  • DC Resistance: ohms/1000 ft (m)44.80 (147.00)
  • Max Distance:* ft (m)230 (70)

Attenuation

Frequency  Nom/Max dB/100 ft Nom/Max (dB/100 m)
@10 MHz 2.4/2.8 (7.9/9.2)
@100 MHz 7.5/9.0 (24.5/29.5)
@250 MHz 12.3/14.7 (40.4/48.2)
@500 MHz 17.8/21.4 (58.4/70.2)

Spec Sheet Includes:

  • Assembly Loss at
  • Product Bulletin
  • Burn Test Data

Get Spec Sheet

Get a quote for E6A5826
