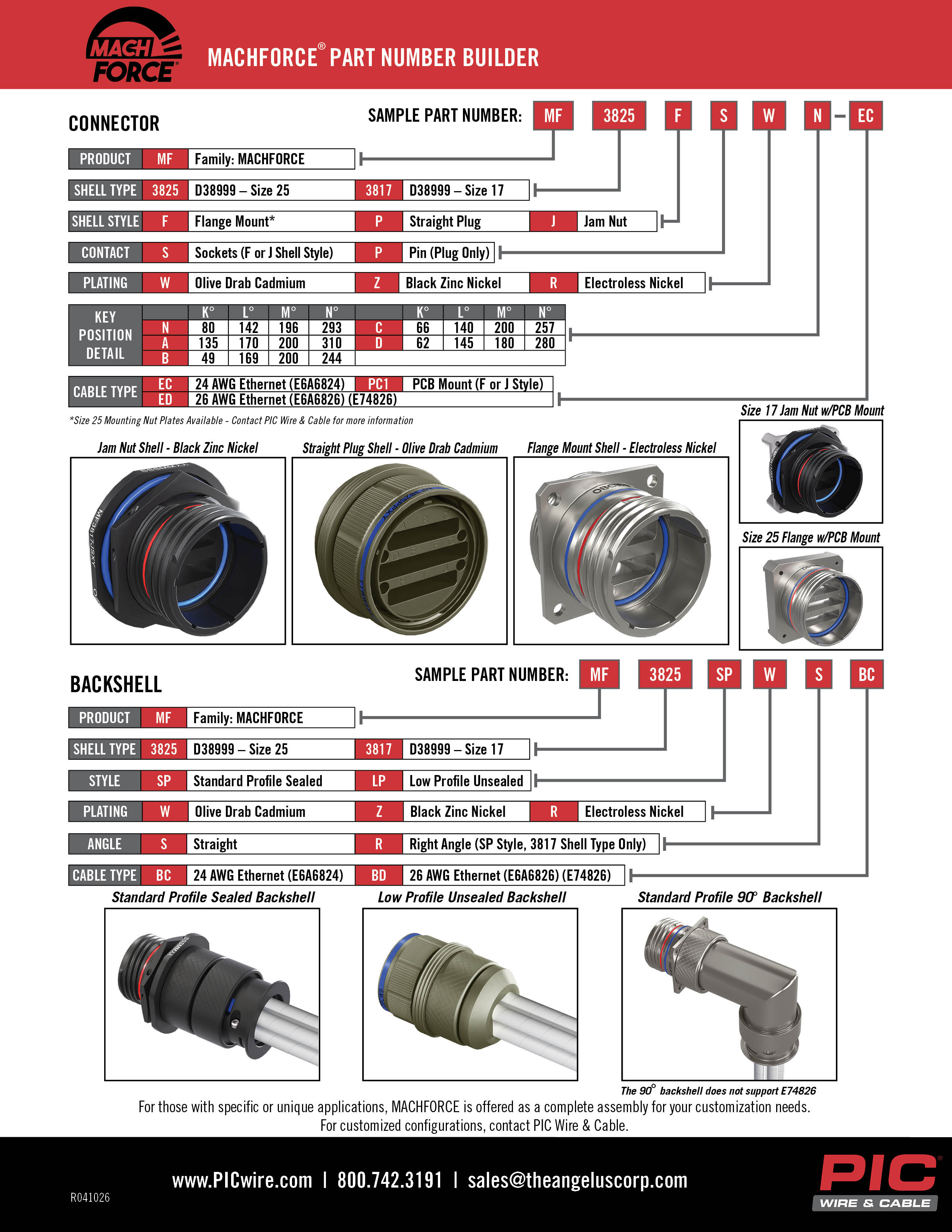

Design and build a part number for the MACHFORCE connector and backshell solution based on unique system application requirements. MACHFORCE connectors are also available as a complete assembly for unique applications.
Custom Configuration in Minutes – Build a solution that matches your system specifications without the complexity.
Advanced Connector Options – Explore our range of MACHFORCE Ethernet Cables engineered for aerospace and defense.
Optimized for Performance – Ensure maximum signal integrity and mechanical durability, even in harsh flight conditions.
Engineered Simplicity – The builder eliminates guesswork by walking you through compatible components, reducing design time.
Custom designs or 3D models are available upon request.
Connector Options:
Include Connector * All connector options are required.
Shell Type Select Shell Type D38999 - Size 17 D38999 - Size 25
Plating Select Plating Olive Drab Cadmium
Shell Style Select Shell Style Jam Nut Receptacle Flange Mount Receptacle Straight Plug
Contact Select Contact Socket Pin
Key Position Detail Select Key Position Detail C (K: 66, L: 140, M: 200, N: 257) D (K: 62, L: 145, M: 180, N: 280) N (K: 80, L: 142, M: 196, N: 293) A (K: 135, L: 170, M: 200, N: 310) B (K: 49, L: 169, M: 200, N: 244)
Cable Type Select Cable Type 24 AWG Ethernet (E6A6824) 26 AWG Ethernet (E6A6826)
Backshell Options:
Include Backshell *All backshell options are required.
Shell Style Select Shell Style Low Profile Unsealed Standard Profile Sealed
Angle Select Angle Straight Right Angle
Clear and start over
Request MACHFORCE Quote with these results.
Get Quote
